Outdoor 10 pairs screw locking DP box for LSA module with back mount frame TP-1721-10 manufacturer from China NINGBO TAEPO Communications Co., Ltd.

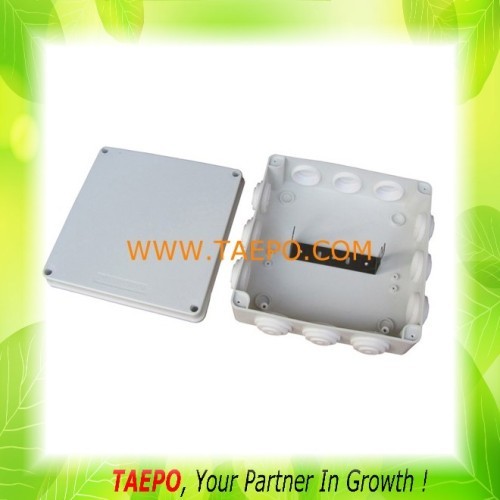

Outdoor 10 pairs screw locking DP box for LSA module with back mount frame

Payment Terms:	T/T,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: TP-1721-10

Packing: Plastic bag+ carton

Brand Name: TAEPO / OEM / Neutral

Material: ABS and stainless steel

Dimension: 200 x 200 x 80mm

Means of Transport: Ocean,Land;Courier

Delivery Date: 7-14 days

Category: Copper communiations

Capacity: 10 pairs to 50 pairs

The LSA modules provide a connection between an exchange side cable pair and a distribution pair. It is for outdoor applications.

Outdoor 10 pairs screw locking DP box for LSA module with back mount frame

Technical Parameters

1) Working temperature: -5℃ ~ 40℃

2) Storage temperature: -25℃ ~55℃

3) Relative humidity: ≤85%(+30℃)

4) Atmospheric pressure: 70kPa ~106kPa

5) Appearance: the color of all metal and plastic parts is uniform, without any scratch, rust, crusting and cracks.

6) The labels are clear and complete.

7) Insulation resistance: under normal ambient conditions, after high temperature test, low temperature test, temperature varing test and humidity heat test, the insulation resistance between any two independent contacts, and/or between contacts and metal parts ≥ 1000MΩ

Order Data

ITEM NO	UNIT	DESCRIPTIONS
TP-1721-10	pcs	Outdoor 10 pairs DP box for LSA module, 200 x 200 x 80mm, screw locking, with back mount frame, without LSA module
TP-1721-20	pcs	Outdoor 20 pairs DP box for LSA module, 200 x 200 x 80mm, screw locking, with back mount frame, without LSA module
TP-1721-30	pcs	Outdoor 30 pairs DP box for LSA module, 200 x 200 x 80mm, screw locking, with back mount frame, without LSA module
TP-1721-40	pcs	Outdoor 40 pairs DP box for LSA module, 200 x 200 x 80mm, screw locking, with back mount frame, without LSA module
TP-1721-50	pcs	Outdoor 50 pairs DP box for LSA module, 200 x 200 x 80mm, screw locking, with back mount frame, without LSA module

Descriptions

This Distribution Point (DP) box is used in terminating cables of secondary telephone network to the cable pairs of subscriber line. It consists of the housing and LSA modules. The housing consists of body and cover, which house LSA modules on the back mount frames. The LSA modules provide a connection between an exchange side cable pair and a distribution pair. It is for indoor applications.
