Product Detail

Model No.: TP-1714-4

Packing: 1pcs/inner box + 20pcs/cart...

Brand Name: TAEPO / OEM / Neutral

Material: ABS

Means of Transport: Ocean,Land,Air;Courier

Delivery Date: 7-14 days

Category: Copper communications

Capacity: 4 pairs, 10 pairs, 30 pairs

1) It consists of the housing and STB modules
2) The housing consists of body and cover, which house STB modules on the back mount frames.

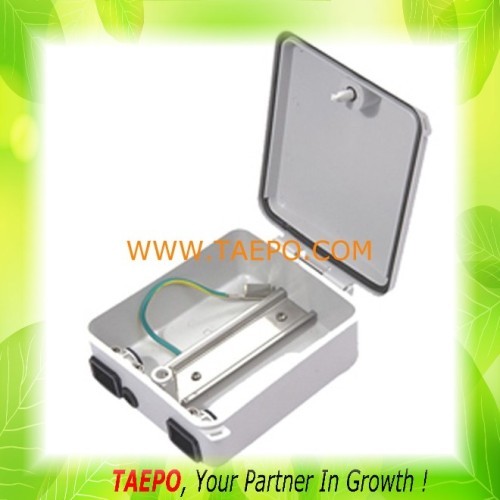

Outdoor 4 / 10 / 30 pairs DP box for STB module screw locking

Order Data

ITEM NO	UNIT	DESCRIPTIONS
TP-1714-4	pcs	Outdoor 4 pairs DP box for STB module, 160 x 140 x 75mm, screw locking, without STB module
TP-1714-10	pcs	Outdoor 10 pairs DP box for STB module, 260 x 210 x 80mm, screw locking, without STB module
TP-1714-30	pcs	Outdoor 30 pairs DP box for STB module, 455 x 210 x 80mm, screw locking, without STB module

Outdoor 4 / 10 / 30 pairs DP box for STB module screw locking

Technical Parameters

1) Working temperature: -20℃ ~ 40℃

2) Storage temperature: -25℃ ~55℃

3) Relative humidity: ≤85%(+30℃)

4) Atmospheric pressure: 70kPa ~106kPa

5) Appearance: the color of all metal and plastic parts is uniform, without any scratch, rust, crusting and cracks.

6) The labels are clear and complete.

7) Insulation resistance: under normal ambient conditions, after high temperature test, low temperature test, temperature varing test and humidity heat test, the insulation resistance between any two independent contacts, and/or between contacts and metal parts ≥ 1000MΩ

8) Contact resistance between contacts: under normal ambient conditions, the contact resistance between contacts ≤7 mΩ. After high temperature test, low temperature test, temperature varing test and humidity heat test, the increasing resistance ≤3 mΩ And after inserting the connection cord (or test cord) into the module for 200 times, the increasing resistance ≤3 mΩ
