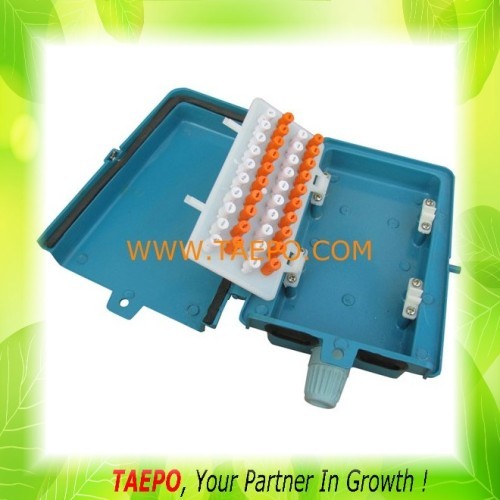

Outdoor 10 / 20 / 30 / 50 pairs DP box for spin-clutch module with module

Main Features

Insulation Displacement Connection

Reliable connections

Clear labeling

Exact cable guiding

Flame retardant performance

Total front operations

Modular design and installations

Technical Parameters

1) Contact resistance between conductor and contact: under normal ambient conditions, the contact resistance between contacts ≤3 mΩ. After high temperature test, low temperature test, temperature varying test and humidity heat test, the increasing resistance ≤2 mΩ. And after terminating for 200 times, the increasing resistance ≤2 mΩ.

2) Dielectric strength: under normal ambient conditions, after high temperature test, low temperature test, temperature varying test and humidity heat test, the insulation resistance between any two independent contacts, and/or between contacts and metal parts is able to withstand an AC voltage of 1000V (virtual value) at 45Hz~60Hz sinowave for 1 minute, without spark over and flying arc

3) Gas tight performance: contact touches the conductor at both sides, and thus forming the gas tight area, while the area of gas tight occupies ≥50% of the touched area on each side.

4) Conductor diameter range: 0.32mm-0.6mm, while insulation ≤ 1.4mm

5) Pulling strength:≥25N while pulling from the vertical side of the contacts

6) Flame retardant performance: all plastic parts are flame retardant, reaching grade of UL FV0

7) Life circle: ≥500 times

Outdoor 10 / 20 / 30 / 50 pairs DP box for spin-clutch module with module

Order Data
