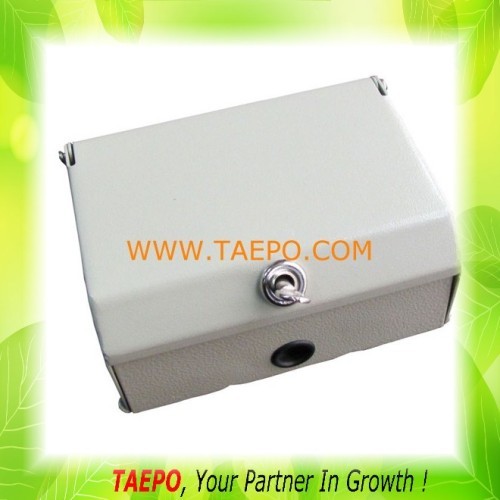

Indoor key locking 10 / 20 / 30 pairs DP box for LSA module

Payment Terms:	T/T,L/C,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: TP-1716-20

Production Capacity: A large number of

Delivery Date: 7-14 days

Category: Copper communications

Color: Grey

Function: for LSA module

Net weight: 490g and 652g

Working temperature: -20℃ - 40℃

Means of Transport: Ocean,Land,Air;Courier

Packing: inner box + carton

Brand Name: TAEPO / OEM / Neutral

Material: CRS with powder coating

Capacity: 10 pairs, 20 pairs and 30 p...

Dimension: 70x135x75mm and 95x135x75mm

Environment: Indoor application

Life circle: ≥200 times

This DP box is used in terminating cables of secondary telephone network to the cable pairs of subscriber line

Indoor key locking 10 / 20 / 30 pairs DP box for LSA module

Main Features

Made of highly flame retardant ABS

Flammability according to UL 94 FV0

Smallest distribution box designed for indoors

Easy operation and wide range of wire

Order Data

ITEM NO	UNIT	DESCRIPTIONS
TP-1716-10	pcs	Indoor 10 pairs DP box for LSA module, 70 x 135 x 75mm, key locking, without LSA module
TP-1716-20	pcs	Indoor20 pairs DP box for LSA module, 95 x 135 x 75mm, key locking, without LSA module
TP-1716-30	pcs	Indoor 30 pairs DP box for LSA module, key locking, without LSA module

Technical Parameters

1) Working temperature: -5℃ ~ 40℃

2) Storage temperature: -25℃ ~55℃

3) Relative humidity: ≤85%(+30℃)

4) Atmospheric pressure: 70kPa ~106kPa

5) Appearance: the color of all metal and plastic parts is uniform, without any scratch, rust, crusting and cracks.

6) The labels are clear and complete.

7) Insulation resistance: under normal ambient conditions, after high temperature test, low temperature test, temperature varing test and humidity heat test, the insulation resistance between any two independent contacts, and/or between contacts and metal parts ≥ 1000MΩ

8) Contact resistance between contacts: under normal ambient conditions, the contact resistance between contacts ≤7 mΩ. After high temperature test, low temperature test, temperature varing test and humidity heat test, the increasing resistance ≤3 mΩ And after inserting the connection cord (or test cord) into the module for 200 times, the increasing resistance ≤3 mΩ
