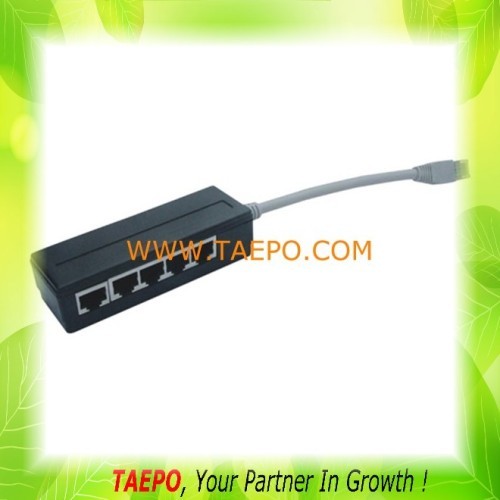

5-port RJ45-RJ45 UTP ISDN adaptor
Order Data
ITEM NO | UNIT | DESCRIPTIONS |
TP-5221-5U15 | pcs | 5-port ISDN adaptor, RJ45-RJ45, UTP, cable length 150mm |
TP-5221-5S15 | pcs | 5-port ISDN adaptor, RJ45-RJ45, STP, cable length 150mm |
Technical Parameters
Meet TIA/EIA-568-A and TIA/EIA-568-B Category 5E requirements.
Meet TIA/EIA TSB-40
Meet ISO/IEC Generic Cabling Standard 11801
Meet CENELEC Generic Cabling Standard EN50173
Angle: 180 Degree
Current rating: 1.5 Amp Max.
Voltage rating: 150 Volts
Contact resistance: less than 7m ohm
Insulation Resistance: More than 1000M ohm
Dielectric Withstand Voltage: 1000 V AC RMS, 45Hz 1min
Housing: PC UL94V-0
Contact: PC Ul94V-0, 0.45mm(0.018") Diameter Phosphor bronze with 3 U" gold plating on contact area.
