CAT5E STP 8P8C 90 degree AP type Keystone jack TP-5210-C5ES8 manufacturer from China NINGBO TAEPO Communications Co., Ltd.

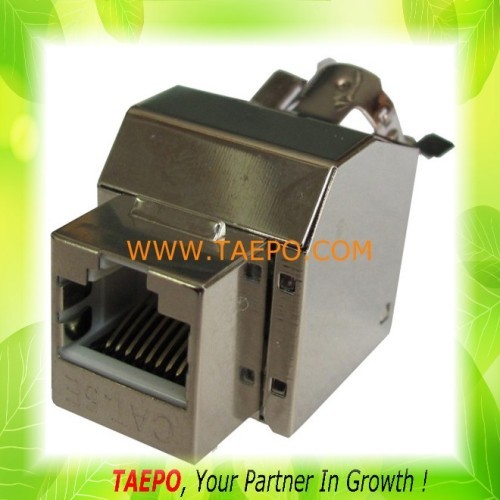

CAT5E STP 8P8C 90 degree AP type Keystone jack

Payment Terms:	T/T,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: TP-5210-C5ES8

Production Capacity: A large number of

Delivery Date: 7-14 days

Category: Network Communications

Type: STP

Color: White

Means of Transport: Ocean,Land,Air;Courier

Packing: 1plastic bag + inner box + ...

Brand Name: TAEPO / OEM / Neutral

Performance: CAT5E

Material: ABS and stainless steel

It is a jack which can be fixed onto faceplate, connection box and patch panels, in order to connection two telephone lines or Lan patch cord

CAT5E STP 8P8C 90 degree AP type Keystone jack

Main Features

1) The new 5209 keystone jack can be used with TAEPO's faceplate and patch panel

2) Reliable gas-tight connections

3) 110/IDC tool for wire termination

4) Universal T568A/B wiring label

Technical Parameters
Insertion dependabllity 750 times, IDC fit for 22~24AWG cable
1.Housing material: high-impact, flame retardancy UL94V-1 Rated
   Contact: Diameter Phosphor bronze with 3 U" to 50 U" Gold plating on contact area
   PCB material: FR-4 T=1.6mm
   Universal wiring label permits wiring to T568A or T568B

2. Meet TIA and ISO component performence requirments, Fluke test report available:
    Insulation Resistance ≥1000 M ohm
    Contact Resistance ≤2.5 M ohm
    Dielectric Strength DC1000V or AC700V in 1 min.,No Arc & Spark-over.
    Life Span Plug/Pull ≥750 times, Plug Retention Force: 89N
    IDC Accept: 24-26 AWG Solid Wire
    Circuit board and reed of the module adopts patented balancing technique,exceed the proposel TIA/EIA-568-B.2-1 Cat.5E
   Transmission bandwidth exceed 250 MHz

CAT5E STP 8P8C 90 degree AP type Keystone jack

Order Data

ITEM NO	UNIT	DESCRIPTIONS
TP-5210-C5EU8	pcs	Keystone jack, CAT5E, UTP, 8P8C, 90 degree , AP
TP-5210-C5ES8	pcs	Keystone jack, CAT5E, STP, 8P8C, 90 degree , AP
TP-5210-C6U8	pcs	Keystone jack, CAT6, UTP, 8P8C, 90 degree , AP
TP-5210-C6S8	pcs	Keystone jack, CAT6, STP, 8P8C, 90 degree , AP
