Product Detail

Model No.: TP-5218-1U15

Packing: 1plastic bag + inner box + ...

Brand Name: TAEPO / OEM / Neutral

Material: ABS housing

Means of Transport: Ocean,Air;Courier

Delivery Date: 7-14 days

Category: Network Communications

cable length: 150mm

It is used for the connection of ISDN equipment in the ADSL systems

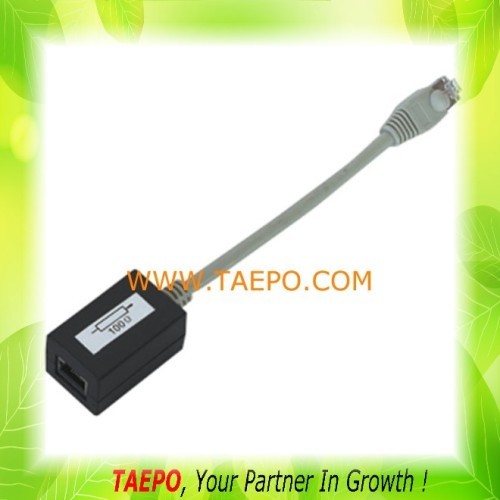

1-port RJ45-RJ45 UTP ISDN adaptor

Order Data

ITEM NO	UNIT	DESCRIPTIONS
TP-5218-1U15	pcs	1-port ISDN adaptor, RJ45-RJ45, UTP, cable length 150mm

Main Features
Insertion dependabllity 750 times, IDC fit for 22~24AWG cable
1.Housing material: high-impact, flame retardancy UL94V-1 Rated
   Contact: Diameter Phosphor bronze with 3 U" to 50 U" Gold plating on contact area
   PCB material: FR-4 T=1.6mm
   Universal wiring label permits wiring to T568A or T568B

2. Meet TIA and ISO component performence requirments, Fluke test report available:
    Insulation Resistance ≥1000 M ohm
    Contact Resistance ≤2.5 M ohm
    Dielectric Strength DC1000V or AC700V in 1 min.,No Arc & Spark-over.
    Life Span Plug/Pull ≥750 times, Plug Retention Force: 89N
    IDC Accept: 24-26 AWG Solid Wire
    Circuit board and reed of the module adopts patented balancing technique,exceed the proposel TIA/EIA-568-B.2-1 Cat.5E
   Transmission bandwidth exceed 250 MHz
