Product Detail

Model No.: TP-5213-C6U8

Packing: 1plastic bag + inner box + ...

Brand Name: TAEPO / OEM / Neutral

Material: ABS housing, contact gold p...

Type: AP type

Means of Transport: Ocean,Air;Courier

Delivery Date: 7-14 days

Category: Network Communications

Performance: CAT6

Color: White or Ivory

It is for the data center and LAN environments while meeting all of the requirements for Category 6

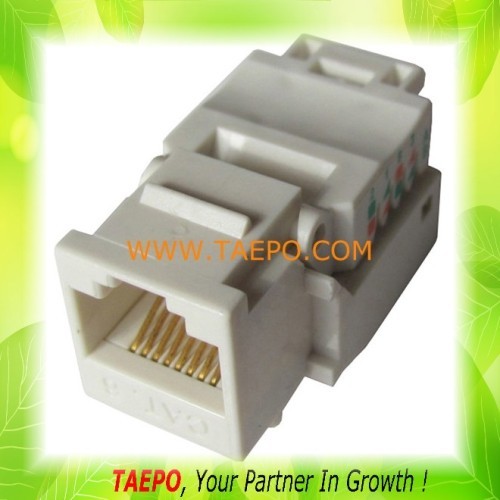

180 degree CAT6 UTP 8P8C tool free AP type Keystone jack

Descriptions
1) It is a jack which can be fixed onto faceplate, connection box and patch panels, in order to connection two telephone lines or Lan patch cord in telephone line systems or network systems withCAT6 performance.
2)UTP available.
3) AP type available.
4) 180 degree available.
5) It has the function of providing stain relief of terminated cables in the work area.

Technical Parameters

1) Operating Temperature Range: -40º to 70 ºC (-40º to 158 ºF)

2) RJ Socket, 8 Positions, General Specification: FCC Part 68.500 (IEC 603-7)

3) Transmission Performance and Reliability: ≥ EIA/TIA 568-B.2-10 and ISO 11801 Class EA

4) Number of Plug Insertion Cycles: ≥ 750 (IEC/EN 60603-7)

5) Diameter Range for Solid and 22-24 AWG

6) Stranded Copper Conductors: 0.50 mm to 0.65 mm (0.016" to 0.025")

7) Wire Insulation Diameter Range (PE,PVC): 1.04 mm to 1.60 mm (0.041" to 0.063")

180 degree CAT6 UTP 8P8C tool free AP type Keystone jack
