1) Modular design, easy installation and maintenance.

2) Spacious room, easy operations.

3) Cables inlet and outlet from the bottom.

4) Closure design, with protection grade at IP54.

5) Grommets at both inlets and outlets.

6) Great strength.

7) Cable clamps and guides are installed for easy management of the cables, and beautiful structure.

8) Rubber furring are used for the connection parts between the body and the door, thus sound sealing and moisture protection achieved.

9) Powder coated, anti corrosion and beautiful appearance.

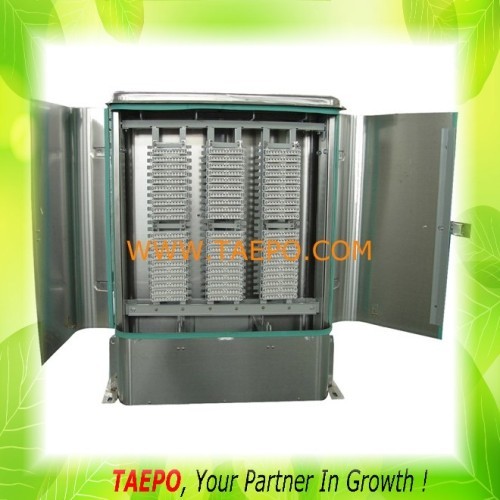

TP-1807 outdoor metal copper cabinet is used for the cross connection and terminations between trunk cable and the distribution cables.
It is also called Cross Connection Cabinet (CCC). It is used outdoor and for copper cables.
The cabinet is a complete cabinet, made of stainless steel, consisting of the door, ceiling, base, mounting frames for mounting LSA modules, and with cable guide for wiring and managing of the cables.
And all these elements are sealed off among themselves. The cabinet is made of stainless steel.
The dimension for the cabinet is 1400(H)×1020(W)×380(D) mm It is secure to install the parts of the cabinet.

The back mounting frames are made of stainless steel, rustproof, and joined by screws.
There are solid terminal on the back mount frame for the connection to the earth.
On the frames, hooks and guides and clamps are designed for the wiring and management of the cables. All the necessary parts are included in the TP-1807-2400 cabinet, such as screws, fasteners, bolts etc.

The opening angle of the door is > 110°, with an arm to hold it, locking for maximum security and a card holding case is designed on the door for the identification of the inlets and outlets pairs.
