CCC

Payment Terms:	T/T,L/C,WU
Place of Origin:	Zhejiang, China (Mainland)

Product Detail

Model No.: TP-1806-1200

Packing: carton

Brand Name: TAEPO / OEM / Neutral

Material: CRS

Means of Transport: Ocean,Land;Courier

Delivery Date: 7-14 days

Category: Copper communications

Capacity: 1200 pairs, 2400 pairs

1) It is installed with stainless steel back mount frames
2) Suitable for LSA modules
3) made of cold rolling steel, with powder coating

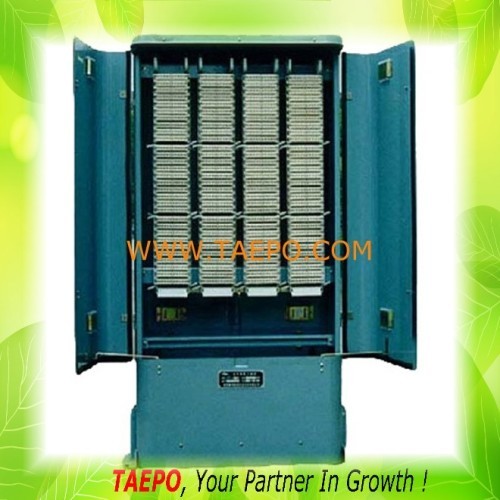

Outdoor 1200 pairs CRS copper cabinet with base

Technical Parameters

1) Environment temperature: -55℃~+55℃

2) Relative humidity: <95%(30℃)

3) Atmospheric pressure: 70~106Kpa

4) Metal sheet thickness: 1.5mm

5) Insulation resistance: ≥1000MΩ(500VDC)

6) Dielectric Strength: ≥1000V (45-60 Hz, AC, 1 minute, without any spark over and flying arc)

Main Features

1) Modular design, easy installation and maintenance.

2) Spacious room, easy operatoions.

3) Cable are inleted and outleted from the bottom.

4) Closure design, with protection grade at IP54.

5) Grommets at both inlets and outlets.

6) Cable clamps and guides are installed for easy management of the cables, and beautiful structure.

7)Rubber furring are used for the connection parts between the body and the door, thus sound sealing and moisture protection achieved.

8) Powder coated, anti corrosion and beautiful apperance.

Outdoor 1200 pairs CRS copper cabinet with base

Order Data

ITEM NO	UNIT	DESCRIPTIONS
TP-1806-1200	pcs	Outdoor 1200 pairs copper cabinet, cold rolling steel housing with powder coating, for LSA module, with base, with back mount frame, without LSA module
TP-1806-2400	pcs	Outdoor 2400 pairs copper cabinet, cold rolling steel housing with powder coating, for LSA module, with base, with back mount frame, without LSA module
