Outdoor CRS copper cabinet from China manufacturer - NINGBO TAEPO Communications Co., Ltd.

Payment Terms:	T/T,L/C,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: TP-1805-2400

Production Capacity: A large number of

Delivery Date: 7-14 days

Category: Copper communications

Capacity: 1200 pairs or 240 pairs

Color: Grey

Protection grade: at IP54

Static charge: more than 200 Kgf

Means of Transport: Ocean,Land;Courier

Packing: carton

Brand Name: TAEPO / OEM / Neutral

Material: CRS (cold rolling steel)

Function: for LSA module or customize...

Environment: Outdoor

Environment temperature: -55℃ -+ 80℃

Dielectric Strength: more than 1000V

1) Modular design, easy installation and maintenance.
2) Spacious room, easy operations.
3) Cables inleted and outleted from the bottom.

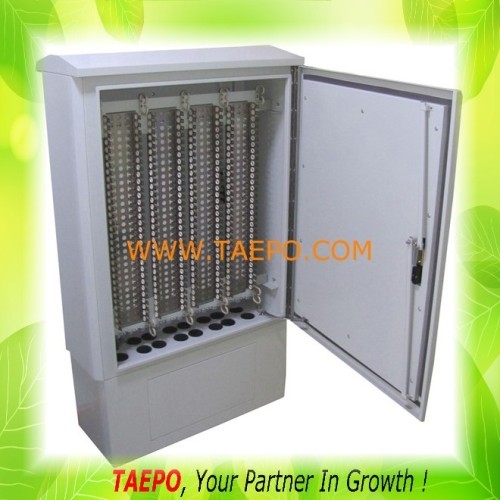

Outdoor 2400 pairs cold rolling steel housing with powder coating copper cabinet with base

Main Features

1) Modular design, easy installation and maintenance.

2) Spacious room, easy operations.

3) Cables inleted and outleted from the bottom.

4) Closure design, with protection grade at IP54.

5) Grommets at both inlets and outlets.

6) Great strength.

7) Cable clamps and guides are installed for easy management of the cables, and beautiful structure.

8) Rubber furring are used for the connection parts between the body and the door, thus sound sealing and moisture protection achieved.

9) Powder coated, anti corrosion and beautiful appearance.

Descriptions

1) The base plate is made of cold rolling steel, resistant to the elements, and it has holes situated at the top in order so that they permit an easy installation on the bolts located in the concrete base and at the same time the joint of the body to the base which to be carried out. These holes will have washers of neon-pressure or similar, to obtain a perfect water tightness.

2) There are rubber grommets in the base of the cabinet for the inlets and outlets of the cables, with sound sealing performance.

3) System of earthing is provided in the cabinet for sound earthing performances.

4) Sound cooling and ventilation systems is provided in the cabinet to keep the temperature down similar to external environmental temperature.

Order Data

ITEM NO	UNIT	DESCRIPTIONS
TP-1805-1200	pcs	Outdoor 1200 pairs copper cabinet, cold rolling steel housing with powder coating, for LSA module, with base, with back mount frame, without LSA module
TP-1805-2400	pcs	Outdoor 2400 pairs copper cabinet, cold rolling steel housing with powder coating, for LSA module, with base, with back mount frame, without LSA module
