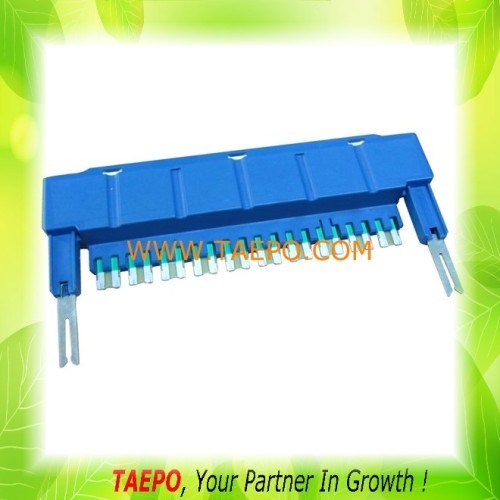

10 pairs over-voltage protection magazine for NT module with GDT

Order Data

10 pairs over-voltage protection magazine for NT module with GDT


Related product for 10 pairs over-voltage protection magazine for NT module with GDT

Techinical Parameters

1) Working temperature: -20℃ ~ 60℃

2) Storage temperature: -40℃ ~80℃

3) Relative humidity: ≤85%(+30℃)

4) Atmospheric pressure: 70kPa ~106kPa

5) Appearance: the color of all metal and plastic parts is uniform, without any scratch, rust, crusting and cracks.

6) The labels are clear and complete.

7) Flame retardant performance: all plastic parts and printed circuit board are flame retardant, reaching grade of GB/T5169.7FV-0

8) Nominal DC spark-over voltage (100V/s) : 230±20% V

9) Impulse spark-over voltage (1kV/us): ≤700V

10) Impulse discharge current (8/20us, 10 times) (a+b)-e: 5kA

11) Impulse discharge current (10/1000us, 300times) (a+b-e):100A

12) AC discharge current (50Hz, 1s, 5 times) )(a+b)-e:5A

13) Insulation resistance: insulation between line a and line b, and/or between line a, b and grounding wire and alarming signal line, and/or between grounding wire and alarming signal line ≥ 1000MΩ. And after high temperature test, low temperature test, temperature varing test and humidity heat test, the insulation resistance ≥ 1000MΩ.

14) Contact resistance: under normal ambient conditions, the contact resistance between protector and block contacts ≤7 mΩ. After high temperature test, low temperature test, temperature varing test and humidity heat test, the increasing resistance ≤3 mΩ And after inserting the connection cord (or test cord) into the module for 200 times, the increasing resistance ≤3 mΩ
