1 pair MDF protector for MDF terminal block # TP-1405-100 TP-1505-1 manufacturer from China NINGBO TAEPO Communications Co., Ltd.

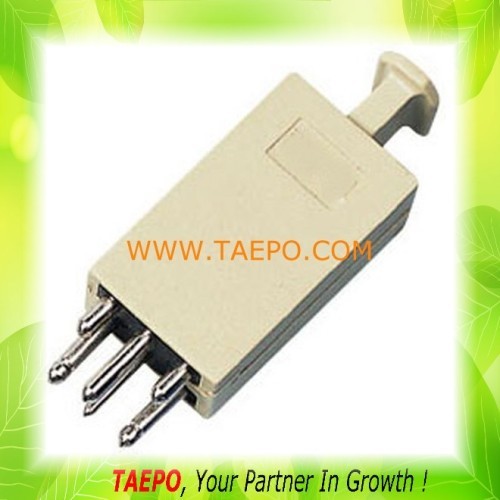

1 pair MDF protector for MDF terminal block # TP-1405-100

Payment Terms:	T/T,L/C,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: TP-1505-1

Production Capacity: A large number of

Delivery Date: 7- 14 days

Category: Copper communications

Material: ABS

Function: for MDF terminal block

Fail-safe response time: ≤5s

Working temperature: -20℃ - 60℃

Means of Transport: Ocean,Land,Air;Courier

Packing: inner box + carton

Brand Name: TAEPO / OEM / Neutral

Capacity: 1 pair

Color: Ivory

Net weight: 15g

Nominal resistance (20℃): 10±20Ω

Storage temperature: -40℃ - 80℃

The surge voltage caused by lightning on or around the outside lines.

1 pair MDFprotector for MDF terminal block # TP-1405-100

Order Data

ITEM NO	UNIT	DESCRIPTIONS
TP-1505-1	pcs	1 pair MDFprotector for MDF terminal block # TP-1405-100

1 pair MDF protector for MDF terminal block # TP-1405-100
1 pair MDFprotector for MDF terminal block # TP-1405-100

Main Features

Modular single pair design

Easy installations

Maintenance free

Graded 5 point protection

Fail Safe (FS) function

Descriptions

MDF protector is used for TP-A302 MDF terminal block, which forms the protection circuit for the protection of exchange room equipments and personnel against over voltage and over current, for mainly as follows:

1) The surge voltage caused by lightning on or around the outside lines.

2) The short-time AC voltage inducted on external lines, when the power line, the power system or the electric railway system is broken down in the neighborhood of the outside line.

3) The outside line directly collides against a 220 V power line.

4) The housing of the protector is flame retardant, high temperature resistance and aging resistance. It is 1 pair modular design protector.

1 pair MDF protector for MDF terminal block # TP-1405-100
