Product Detail

Model No.: TP-1502-8P2G

Packing: inner box + carton

Brand Name: TAEPO / OEM / Neutral

Material: ABS with or without GDT

Means of Transport: Ocean,Land,Air;Courier

Delivery Date: 7-14 days

Category: Copper communications

Capacity: 8 pairs or 10 pairs, 2-pole...

1) used for LSA modules
2) forms the protection circuit for the protection of exchange room equipments and personnel against over voltage

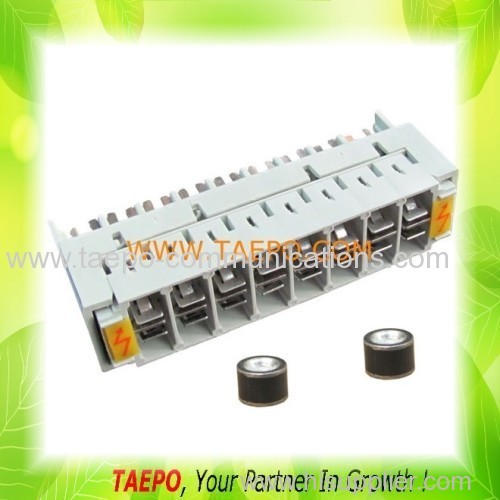

8 pairs 2-pole over-voltage protection magazine for LSA module with GDT

Main Features

Modular 10 pair design

Easy installations

Maintenance free

Graded 3 point protection

Fail Safe (FS) function

Technical Parameters

1) Working temperature: -20℃ ~ 60℃

2) Storage temperature: -40℃ ~80℃

3) Relative humidity: ≤85%(+30℃)

4) Atmospheric pressure: 70kPa ~106kPa

5) Appearance: the color of all metal and plastic parts is uniform, without any scratch, rust, crusting and cracks.

6) The labels are clear and complete.

7) Flame retardant performance: all plastic parts and printed circuit board are flame retardant, reaching grade of GB/T5169.7FV-0

8) Nominal DC spark-over voltage (100V/s) : 230±20% V

9) Impulse spark-over voltage (1kV/us): ≤700V

10) Impulse discharge current (8/20us, 10 times) (a+b)-e: 5kA

11) Impulse discharge current (10/1000us, 300times) (a+b-e):100A

12) AC discharge current (50Hz, 1s, 5 times) )(a+b)-e:5A

13) Insulation resistance: insulation between line a and line b, and/or between line a, b and grounding wire and alarming signal line, and/or between grounding wire and alarming signal line ≥ 1000MΩ. And after high temperature test, low temperature test, temperature varing test and humidity heat test, the insulation resistance ≥ 1000MΩ.

14) Contact resistance: under normal ambient conditions, the contact resistance between protector and block contacts ≤7 mΩ. After high temperature test, low temperature test, temperature varing test and humidity heat test, the increasing resistance ≤3 mΩ And after inserting the connection cord (or test cord) into the module for 200 times, the increasing resistance ≤3 mΩ

Related product for 8 pairs 2-pole over-voltage protection magazine for LSA module with GDT

Related product for 8 pairs 2-pole over-voltage protection magazine for LSA module with GDT

Order Data

ITEM NO UNIT DESCRIPTIONS
TP-1502-8P2G pcs 8 pairs 2-pole over-voltage protection magazine for LSA module, with GDT

ITEM NO	UNIT	DESCRIPTIONS
TP-1502-10P2	pcs	10 pairs 2-pole over-voltage protection magazine for LSA module, without GDT
TP-1502-10P2G	pcs	10 pairs 2-pole over-voltage protection magazine for LSA module, with GDT
TP-1502-8P2	pcs	8 pairs 2-pole over-voltage protection magazine for LSA module, without GDT
TP-1502-8P2G	pcs	8 pairs 2-pole over-voltage protection magazine for LSA module, with GDT
TP-1502-10P3	pcs	10 pairs 3-pole over-voltage protection magazine for LSA module, without GDT
TP-1502-10P3G	pcs	10 pairs 3-pole over-voltage protection magazine for LSA module, with GDT
TP-1502-8P3	pcs	8pairs 3-pole over-voltage protection magazine for LSA module, without GDT
TP-1502-8P3G	pcs	8 pairs 3-pole over-voltage protection magazine for LSA module, with GDT
