Product Detail

Model No.: TP-3520-12

Packing: inner box + carton

Brand Name: TAEPO / OEM / Neutral

Material: ABS

Type: vertical type

Means of Transport: Ocean,Air;Courier

Delivery Date: 7-14 days

Category: Fiber Optic communications

Capacity: 12 fibers to 144 fibers

Color: Black

1) It is a vertical or dome type
2) It belongs to the mechanical pressure seal splice closure system
3) It is used for the terminations FO cables

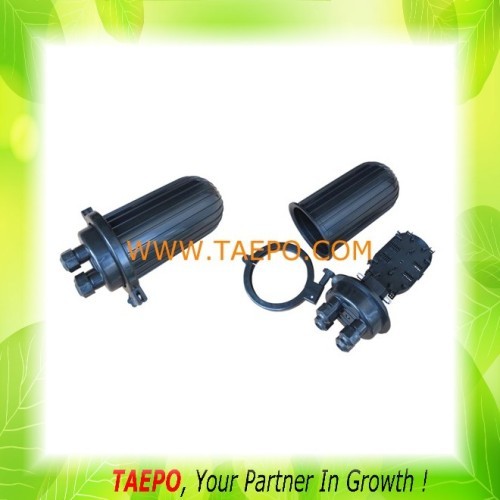

12 fibers to 144 fibers 2 inlets 2 outlets vertical type mechanical sealing Fiber optic splice closure

Order Data

ITEM NO	UNIT	DESCRIPTIONS
TP-3520-12	pcs	Fiber optic splice closure, vertical type, mechanical sealing, 12 fibers, max 144fibers, 360mm(H) xΦ160mm, 2 inlets 2 outlets, max cable dia 18mm, with splicetray, mounting bracket

Descriptions

1) TP-3520 fiber optic splice closure is a vertical or dome type, 360mm(H) xΦ160mm, 2 inlets and 2 outlets. 2) It belongs to the mechanical pressure seal splice closure system, and it is widely used for the terminations of communication FO cables.
3) The FOSC is suitable for protecting fiber cable splices in straight-through and branching applications. It can be placed in aerial, underground direct buried, wall-mounted and wall-mounted in hole and duct applications. Based on an advanced formula, the plastic parts are made of injection-molded, high-strength engineering plastic PC by numerical control equipment, therefore effectively prevent products from aging caused by coldness, heat, oxygen and ultraviolet radiation. The strong housing and main components provide fire resistant, waterproof, and quakeproof while protecting splices during pulling, tensioning and impacting. It ensures long-term reliability and usage under ambient temperature from -40℃ to +60 ℃.
4) The maximum capacity of TP-3520 FOSC is 144 fibers.

Technical Parameters

1) Working temperature: -40℃ to +60 ℃

2) Atmospheric pressure: 70~106Kpa

3) Normal temperature sealing performance: 72h, internal air pressure 70Kpa, without decrease.

4) High temperature sealing performance: 60 ℃168h, internal air pressure 70Kpa, without decrease.

5) Tensile strength: 1000N

6) Compressive strength: 2000N/10cm2 within 1 min

7) Insulation resistance: more than 10MΩ between metal parts or between metal parts and the ground

8) Dielectric strength: 15KV DC, 2min, without spark over and flying arc

9) Working life: more than 20 years
