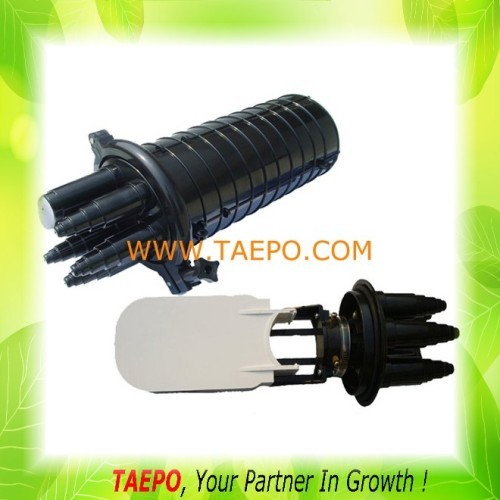

4+1 ports vertical type heat shrink sealing Fiber optic splice closure
Descriptions
1) TP-3506 fiber optic splice closure (FOSC) is a vertical or dome type, 440mm(H) xΦ140mm, with 4+1 ports design.
2) It belongs to the heat shrink seal
splice closure system, and it is widely used for the terminations of communication FO cables.
3) The FOSC is suitable for protecting fiber cable splices in straight-through and branching applications.
4) It can be placed in aerial, underground direct buried, wall-mounted and wall-mounted in hole and duct applications.
5) Based on an advanced formula, the plastic parts are made of injection-molded, high-strength
engineering plastic PC by numerical control equipment, therefore effectively prevent products from aging caused by coldness, heat, oxygen and ultraviolet radiation.
6) The strong housing and main components provide fire resistant, waterproof, and quakeproof while protecting splices during pulling, tensioning and impacting.
7) It ensures long-term reliability and usage under ambient temperature from -40℃ to +60 ℃.
8) The maximum capacity of TP-3506 FOSC is 96 fibers for bunchy cable. 4-port entries suit for cables with max diameter 23mm, while oval entries size 40 x 70mm
Main Features
1) Advanced internal structure design, thus fiber suffering no attenuation
2) The closure is spacious enough for winding and storing fibers
3) Flip style fiber optic splice trays are designed
4) The curved radius meets with international standard
6) Innovative elastic integrated seal fitting
7) Adopting PC material for plastic parts and excellent steel for the external fasteners and structural parts.
8) With the function of reuse and capacity expansion for many times
9) With the function of connection and disconnection for electrical connection for the inlet and outlet
fiber optic cables.
4+1 ports vertical type heat shrink sealing Fiber optic splice closure
Order Data
