3 inlets 3 outlets FOSC from China manufacturer - NINGBO TAEPO Communications Co., Ltd.

Payment Terms:	T/T,WU
Place of Origin:	Zhejiang, China (Mainland)

Product Detail

Model No.: TP-3512-12

Packing: 1pcs/inner box + 6pcs/carto...

Brand Name: TAEPO / OEM / Neutral

Material: ABS

Type: Horizontal type

Means of Transport: Ocean,Air;Courier

Delivery Date: 7-14 days

Category: Fiber Optic communications

Capacity: 12 fibers to 144 fibrs

Color: Black

With the function of connection and disconnection for electrica connection for the inlet and outlet fo cables.

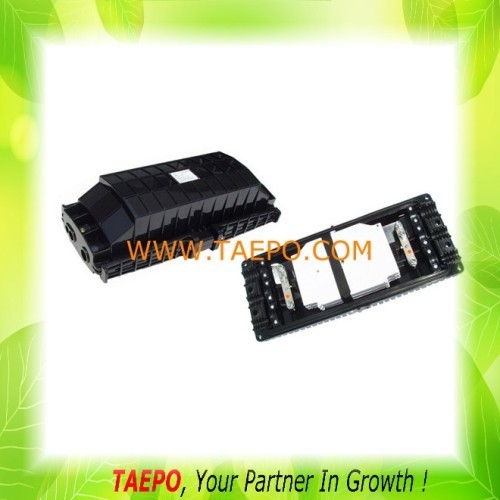

144 fibers horizontal type snap-in mechanical sealing 3 inlets 3 outlets Fiber optic splice closure

Main Features

1) Adopting plug-in fixing

2) Advanced internal structure design, thus fiber suffering no attenuation

3) The closure is spacious enough for winding and storing fibers

4) FO splice trays are designed

5) The curved radius meets with international standard

6) Easy and fast to increase and reduce splice tray

7) Rubber seal fitting

8) Adopting PC material for plastic parts and excellent steel for the external fastners and structural parts.

9) With the function of reuse and capacity expansion for many times

10) With the function of connection and disconnection for electrica connection for the inlet and outlet fo cables.

Technical Parameters

1) Working temperature: –40℃ to +60 ℃

2)Atmospheric pressure: 70~106Kpa

3) Normal temperature sealing performance: 72h, internal air pressure 70Kpa, without decrease.

4) High temperature sealing performance: 60 ℃168h, internal air pressure 70Kpa, without decrease.

5) Tensile strength: 1000N

6) Compressive strength: 2000N/10cm² within 1 min

7) Insulation resistance: more than 10MΩ between metal parts or between metal parts and the ground

8) Dielectric strength: 15KV DC, 2min, without spark over and flying arc

9) Working life: more than 20 years

144 fibers horizontal type snap-in mechanical sealing 3 inlets 3 outlets Fiber optic splice closure

144 fibers horizontal type snap-in mechanical sealing 3 inlets 3 outlets Fiber optic splice closure

Order Data

ITEM NO	UNIT	DESCRIPTIONS
TP-3512-12	pcs	Fiber optic splice closure, horizontal type, snap-in mechanical sealing, 12 fibers,max 144 fibers, 450(L) x 216(W) x 160(H) mm, 3 inlets 3 outlets, max cabledia 22mm, with splice tray, mounting hangers
