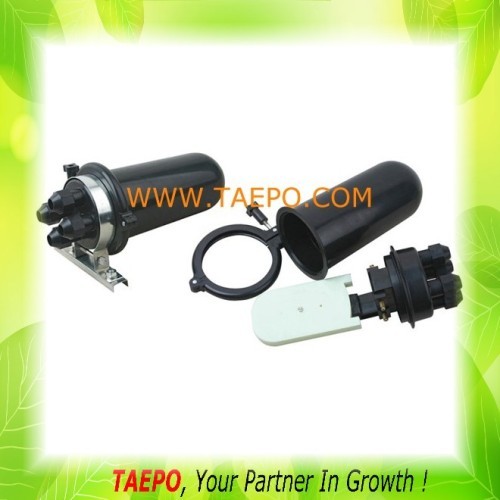

2 inlets and 2 outlets 12 Fibers vertical type mechanical sealing Fiber optic splice closure

Descriptions

1) It is a vertical or dome type, 375mm(H) xΦ120mm, 2 inlets and 2 outlets.
2) It belongs to the mechanical pressure seal splice closure system, and it is widely used for the terminations of communication FO cables.
3) The FOSC is suitable for protecting fiber cable splices in straight-through and branching applications.
4) It can be placed in aerial, underground direct buried, wall-mounted and wall-mounted in hole and duct applications.
5) Based on an advanced formula, the plastic parts are made of injection-molded, high-strength engineering plastic PC by numerical control equipment, therefore effectively prevent products from aging caused by coldness, heat, oxygen and ultraviolet radiation.
6) The strong housing and main components provide fire resistant, waterproof, and quakeproof while protecting splices during pulling, tensioning and impacting.
7) It ensures long-term reliability and usage under ambient temperature from -40℃ to +60 ℃.
8) The maximum capacity of TP-3501 FOSC is 60 fibers.

Order Data

Main Features

1) Advanced internal structure design, thus fiber suffering no attenuation

2) The closure is spacious enough for winding and storing fibers

3) Flip style FO splice trays are designed

4) The curved radius meets with international standard

5) Easy and fast to increase and reduce splice tray

6) Innovative elastic integrated seal fitting

7) Adopting PC material for plastic parts and excellent steel for the external fasteners and structural parts.

8) With the function of reuse and capacity expansion for many times

9) With the function of connection and disconnection for electrical connection for the inlet and outlet FO cables.

12 Fibers vertical type mechanical sealing Fiber optic splice closure
