1) Modular design, easy installation and maintenance.

2) Spacious room, easy operatoions.

3) Cable are inleted and outleted from the bottom.

4) Closure design, with protection grade at IP54.

5) There are grommets at both inlets and outlets.

6) Reliable elements for the fixing, splcing and earthing.

7) Rubber furring are used for the connection parts between the body and the door, thus sound sealing and moisture protection achieved.

1) It used for the cross connection and terminations between trunk cable and the distribution cables.

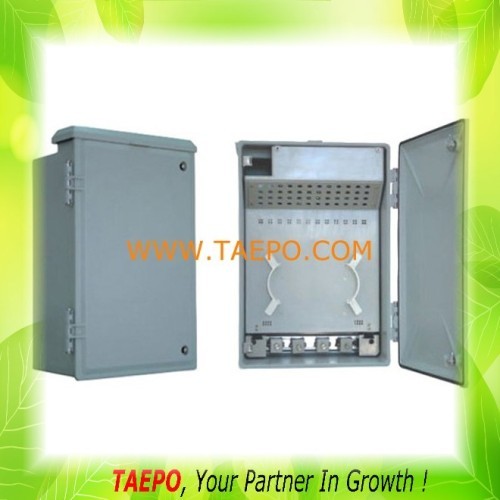

2) It is also called Optical Cross Connection Cabinet (OCCC). It is used outdoor and for fiber optic cables.
3) The cabinet consists of the body and the base, made of fiber glass reinforced polyester.
4) It is installed with splice tray, with the function of splicing and patching of FO cables.
5) The max capacity for the cabinet is 48 fibers.
6) Outside dimensions for body: 460(H)x300(W)x180(D)mm

1) Environment temperature: -55℃~+65℃

2) Relative humidity: <95%(30℃)

3) Atmospheric pressure: 70~106Kpa

4) Insulation resistance: ≥1000MΩ(500VDC)

5) Dielectric Strength: ≥3000V (45-60 Hz, AC, 1 minute, without any spark over and flying arc)

6) Insertion loss: ≤0.25db

7) Return loss: PC>50dB UPC>50dB APC>65dB

8) Bending radius: ≥ 37.5 mm

9) Connection life span: >1000 times
