48 fibers Outdoor wall or pole mounted SMC fiber cabinet TP-3403-48B manufacturer from China TAEPO Communications Co., Ltd.

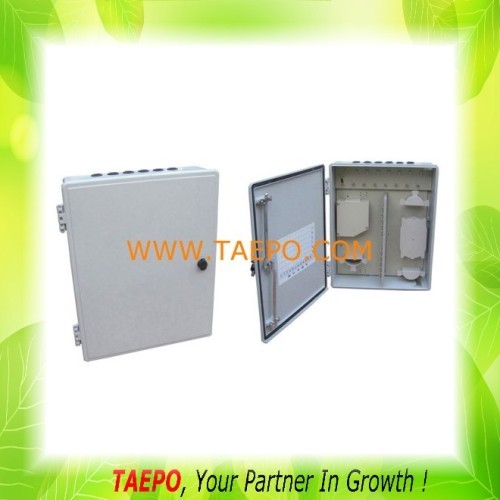

48 fibers Outdoor wall or pole mounted SMC fiber cabinet

Payment Terms:	T/T,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: TP-3403-48B

Packing: inner box + carton

Brand Name: TAEPO / OEM / Neutral

Material: CRS with powder coating

Dimension: 490(H) x 400(W) x 125(D) mm

Means of Transport: Ocean,Land,Air;Courier

Delivery Date: 7-14 days

Category: Fiber Optic communications

Capacity: 48 fibers

It is used for the cross connection and terminations between trunk cable and the distribution cables.

48 fibers Outdoor wall or pole mounted SMC fiber cabinet

Order Data

ITEM NO	UNIT	DESCRIPTIONS
TP-3403-48B	pcs	Outdoor SMC fiber cabinet, 48 fibers, wall/pole mounted, with splice tray, splitter case, without adaptor, pigtail, splitter, 490(H) x 400(W) x 125(D) mm

Descriptions

outdoor SMC fiber cabinet is used for the cross connection and terminations between trunk cable and the distribution cables. It is also called Optical Cross Connection Cabinet (OCCC). It is used outdoor and for fiber optic cables. The cabinet consists of the body and the base, made of fiber glass reinforced polyester. It is installed with splice tray, with the function of splicing and patching of FO cables. The max capacity is 48 fibers. Outside dimensions for body: 490(H) x 400(W) x 125(D) mm

Main Features

Modular design, easy installation and maintenance.

Spacious room, easy operatoions.

Cable are inleted and outleted from the bottom.

Closure design, with protection grade at IP54.

There are grommets at both inlets and outlets.

Reliable elements for the fixing, splcing and earthing.

Rubber furring are used for the connection parts between the body and the door, thus sound sealing and moisture protection achieved.
