6 pairs disconnection module from China manufacturer - NINGBO TAEPO Communications Co., Ltd.

Payment Terms:	T/T,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: TP-1235-6

Packing: inner box + carton

Brand Name: TAEPO / OEM / Neutral

Material: ABS with contact gold plate...

Means of Transport: Ocean,Air

Delivery Date: 7-14 days

Category: Copper communications

Capacity: 6 pairs

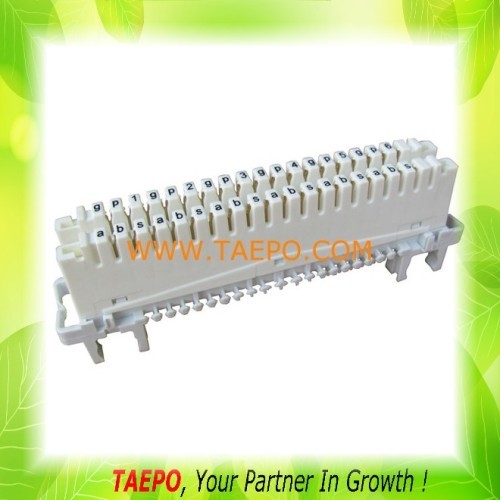

6 pairs LSA disconnection module, numbers from 1, 2, 3^6

6 pairs LSA disconnection module with numbers from 1, 2, 3,4,5,6

ITEM NO	UNIT	DESCRIPTIONS
TP-1235-6	pcs	6 pairs LSA disconnection module, numbers from 1, 2, 3…6

Descriptions

1) This LSA disconnection module is used throughout the distribution level, in the main distribution frame (MDF), in the cross connection cabinet (CCC) and in the distribution point (DP) boxes. It is highly reliable and cost-effective wire connection system for modern telecommunications and data networks.

2) It adopts IDC (Insulation Displacement Connection) technique, which means that no soldering, wire-stripping or the use of screws is necessary, and which clamps the wires at a 45 degree angle, thus dramatically reducing the risk of a poor termination and increasing the wiring productivity. The IDC contact is phosphor bronze, with silver plating.

3) It use a normally closed two piece contact, with a convenient disconnection feature. By inserting a disconnect plug into a wire pair, you can temporarily or permanently disconnect the circuit. A test cord can be inserted into a pair to test each side of the circuit independently. This greatly accelerates fault identification.

4) The center contact point can also be used for monitoring or over voltage protection.
