10 pairs LSA connection module with color label TP-1202-10CL manufacturer from China NINGBO TAEPO Communications Co., Ltd.

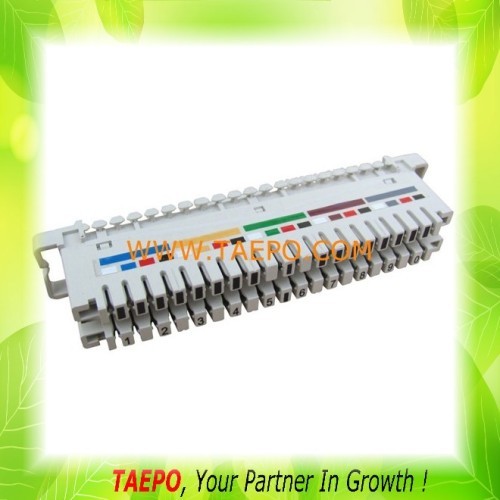

10 pairs LSA connection module with color label

Payment Terms:	T/T,L/C,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: TP-1202-10CL

Production Capacity: 50000 Piece/Pieces per Week

Delivery Date: 7-14 days

Materia (PVC): ABS or PBT

Category: Copper communications

Means of Transport: Ocean,Land,Air;Courier

Packing: 10pcs/inner box + 250pcs/ca...

Brand Name: Neutral / OEM / TAEPO

Color: Grey

It adopts IDC (Insulation Displacement Connection) technique, which means that no soldering, wire-stripping or the use of screws is necessary

10 pairs LSA connection module with color label

ITEM NO	UNIT	DESCRIPTIONS
TP-1202-10	pcs	10 pairs LSA connection module
TP-1202-10P	pcs	10 pairs LSA profile connection module
TP-1202-10CL	pcs	10 pairs LSA connection module, color label
TP-1202-8	pcs	8 pairs LSA connection module
TP-1202-5	pcs	5 pairs LSA connection module

Descriptions

TP-1202-10 LSA disconnection module is used throughout the distribution level, in the main distribution frame (MDF), in the cross connection cabinet (CCC) and in the distribution point (DP) boxes. It is highly reliable and cost-effective wire connection system for modern telecommunications and data networks.

It adopts IDC (Insulation Displacement Connection) technique, which means that no soldering, wire-stripping or the use of screws is necessary, and which clamps the wires at a 45 degree angle, thus dramatically reducing the risk of a poor termination and increasing the wiring productivity.

Main Features

Insulation Displacement Connection

No Wire-stripping, screw and solder free

Reliable connections

Clear labeling

Flame retardant performance

Modular design and installations

Gas tight connection

Two wires per contact

One push wire insertion

No Wire-stripping, screw and solder free

Only one inexpensive tool required

Schematic Diagram

Schematic Diagram for 10 pairs LSA connection module with color label

10 pairs LSA connection module with color label
