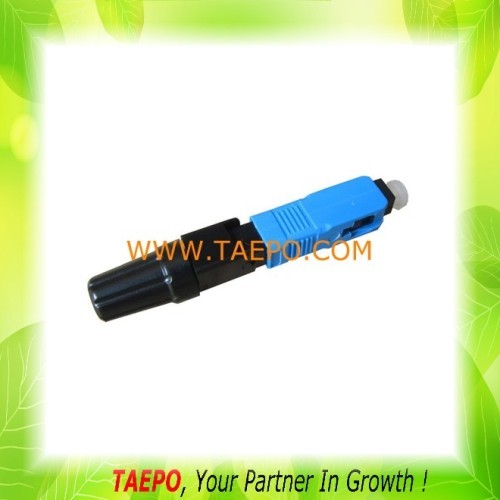

Singlemode simplex SC/UPC Field assembly optical connector for fiber cable
Payment Terms: |
T/T,L/C,WU |
Place of Origin: |
Zhejiang, China (Mainland) |
Product Detail
Model No.:
TP-3002-FSCU
Packing:
carton
Brand Name:
TAEPO / OEM / Neutral
Type:
SC/UPC and SC/APC
Means of Transport:
Ocean,Air
Delivery Date:
7-14days
Category:
Fiber Optic Communications
1) High density substitution for connectors
2) Both construction and maintenance
Singlemode simplex SC/UPC Field assembly optical connector for fiber cable
Applications
1) High density substitution for connectors
2) Singlemode
3) Both construction and maintenance
4) Aerial, buried, underground or pedestal
5) Inside or outside buildings
6) FTTX, Metro and Enterprise networks
7) Up to 10 Gigabit data rates
Main Features
1) High performance
2) Less than 10 seconds installation time
3) Minimum tooling requirements
4) Easy on-site installation
5) Pre-embed fiber
Technical Parameters
Item | Technical Parameters |
Applicable for | 0.25/0.90/2.0/3.0mm, 3.1x2.0mm fiber cable fiber cable |
| 125μm ( 652 & 657 ) |
Tight buffer diameter | 250μm |
Fiber mode | Single |
Operation time | About 10s(no fiber cut) |
Insert loss | ≤ 0.3dB(1310nm & 1550nm) |
Return loss | ≤ -40dB |
Fastening strength of naked fiber | >5 N |
Fastening strength of naked fiber holder | >10 N |
Using temperature | -40~+80℃ |
Mechanical durability (500 times) | IL ≤ 0.2dB RL ≤ 5dB |
Operation Tools for
Singlemode simplex SC/UPC Field assembly optical connector for fiber cable
Procedures for
Singlemode simplex SC/UPC Field assembly optical connector for fiber cable
Singlemode simplex SC/UPC Field assembly optical connector for fiber cable
