fast connector from China manufacturer - NINGBO TAEPO Communications Co., Ltd.

Payment Terms:	T/T,L/C,WU
Place of Origin:	Zhejiang, China (Mainland)

Product Detail

Model No.: TP-3002-FFC

Packing: inner box + carton

Brand Name: TAEPO / OEM / Netrual

Tpye 1: Singlemode, Multimode

Type 3: UPC, APC

Means of Transport: Ocean,Air;Courier

Delivery Date: 7-14 days

Category: Fiber Optic communications

Type 2: Simplex, Duplex

1) Inside or outside buildings
2) FTTx, Metro and Enterprise networks
3) Up to 10 Gigabit data rates

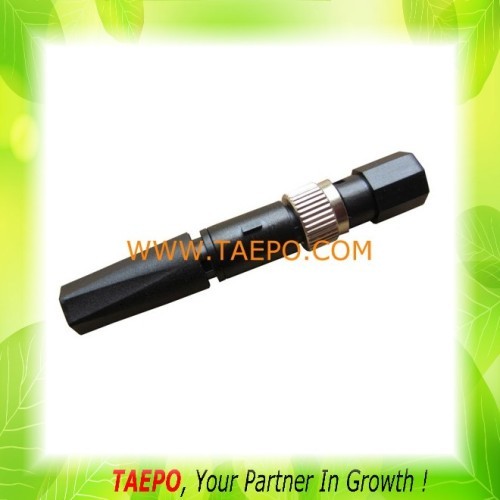

Singlemode simplex FC/UPC Field assembly optical connector

Order Data

ITEM NO	UNIT	DESCRIPTIONS
TP-3002-FFC	pcs	Field assembly optical connector, FC/UPC

Main Features

1) High performance

2) Less than 10 seconds installation time

3) Minimum tooling requirements

4) Easy on-site installation

5) Pre-embed fiber

Applications

1) High density substitution for connectors

2) Singlemode

3) Both construction and maintenance

4) Aerial, buried, underground or pedestal

5) Inside or outside buildings

6) FTTx, Metro and Enterprise networks

7) Up to 10 Gigabit data rates

Technical Parameters

Item	Technical Parameters
Applicable for	0.25/0.90/2.0/3.0mm, 3.1x2.0mm fiber cable fiber cable
Optical fiber diameter	125μm ( 652 & 657 )
Tight buffer diameter	250μm
Fiber mode	Single
Operation time	About 10s(no fiber cut)
Insert loss	≤ 0.3dB(1310nm & 1550nm)
Return loss	≤ -40dB
Fastening strength of naked fiber	>5 N
Fastening strength of naked fiber holder	>10 N
Using temperature	-40~+80℃
Mechanical durability (500 times)	IL ≤ 0.2dB RL ≤ 5dB
