CAT6 STP 8P8C 180 degree AP type Keystone jack

Descriptions

A CAT6 STP 8P8C 180 degree AP style Keystone jack is a type of connector used in networking. Let's break down each component:

1.  CAT6: This refers to Category 6 cabling, which is a type of twisted pair Ethernet cable used in networks. CAT6 cables are designed to support Gigabit Ethernet and other high-speed networking protocols.

2.  STP: STP stands for Shielded Twisted Pair. This indicates that the cable has shielding to reduce electromagnetic interference (EMI) and crosstalk. Shielded cables are often used in environments where there is a high risk of interference, such as near electrical equipment.

3.  8P8C: This stands for 8 positions, 8 conductors. It's the standard connector used for Ethernet cables, commonly known as RJ45.

4.  180 degree AP style: This refers to the jack and the style of termination. 180-degree typically means that the wires are terminated at a 180-degree angle, which can make termination easier and more consistent. "AP style" may refer to a specific design or manufacturer's terminology.

5.  Keystone jack: A keystone jack is a type of modular connector used in networking. It's designed to snap into a compatible faceplate or patch panel, allowing for easy installation and reconfiguration of network connections.

So, a CAT6 STP 8P8C 180 degree AP style Keystone jack is a shielded connector designed for CAT6 cables with 8 conductors, featuring a specific termination style , and it's compatible with keystone-style mounting systems.

Main Features

The main feature of a CAT6 STP 8P8C 180 degree AP style Keystone jack is its ability to provide high-speed and reliable network connections while minimizing electromagnetic interference and crosstalk.

The CAT6 designation ensures that it meets the specifications for Category 6 cabling, which can support Gigabit Ethernet and other high-speed networking protocols. The STP (Shielded Twisted Pair) design further enhances performance by reducing electromagnetic interference, making it suitable for use in environments where interference is a concern.

The 8P8C configuration means it has eight positions and eight conductors, which is the standard connector used for Ethernet cables (RJ45).

The 180-degree termination style and AP style design likely contribute to easier and more consistent termination during installation, potentially saving time and effort.

Finally, being a keystone jack means it's compatible with modular mounting systems, allowing for easy installation and reconfiguration of network connections as needed.

Applications
Insertion dependabllity 750 times, IDC fit for 22~24AWG cable
1.Housing material: high-impact, flame retardancy UL94V-1 Rated
   Contact: Diameter Phosphor bronze with 3 U" to 50 U" Gold plating on contact area
   PCB material: FR-4 T=1.6mm
   Universal wiring label permits wiring to T568A or T568B

2. Meet TIA and ISO component performence requirments, Fluke test report available:
    Insulation Resistance ≥1000 M ohm
    Contact Resistance ≤2.5 M ohm
    Dielectric Strength DC1000V or AC700V in 1 min.,No Arc & Spark-over.
    Life Span Plug/Pull ≥750 times, Plug Retention Force: 89N
    IDC Accept: 24-26 AWG Solid Wire
    Circuit board and reed of the module adopts patented balancing technique,exceed the proposel TIA/EIA-568-B.2-1 Cat.5E
   Transmission bandwidth exceed 250 MHz

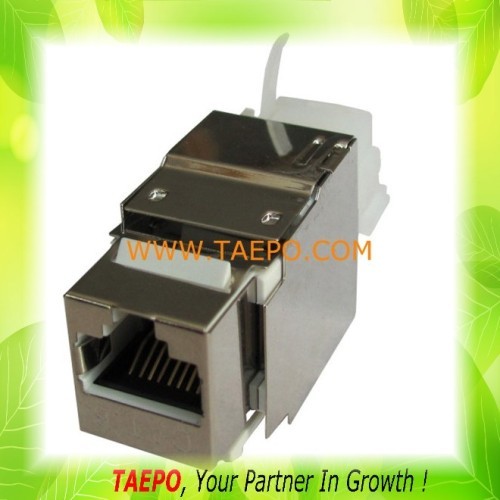

CAT6 STP 8P8C 180 degree AP type Keystone jack
