8P8C Keystone jack from China manufacturer - NINGBO TAEPO Communications Co., Ltd.

Payment Terms:	T/T,WU
Place of Origin:	Zhejiang, China (Mainland)

Product Detail

Model No.: TP-5207

Packing: 1plastic bag + inner box + ...

Brand Name: TAEPO / OEM / Neutral

Material: ABS housing

Type: AP type

Means of Transport: Ocean,Air;Courier

Delivery Date: 7-14 days

Category: Network Communications

Performance: CAT3 and CAT5E

Color: Ivory

It allows TAEPO to deliver the next generation of 10G performance and continue the evolution of high density solutions for the data center

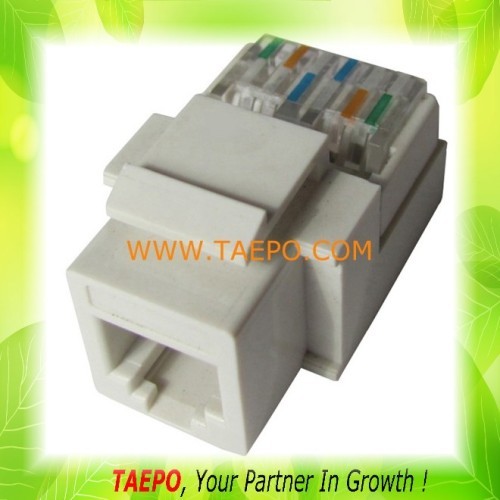

CAT5E 8P8C tool free AP type 90 degree Keystone jack

Main Features

The new 5207 keystone jack can be used with TAEPO's faceplate and patch panel

Reliable gas-tight connections

110/IDC tool for wire termination

Universal T568A/B wiring label

Technical Parameters

Operating Temperature Range: -40º to 70 ºC (-40º to 158 ºF)

RJ Socket, 8 Positions, General Specification: FCC Part 68.500 (IEC 603-7)

Transmission Performance and Reliability: ≥ EIA/TIA 568-B.2-10 and ISO 11801 Class EA

Number of Plug Insertion Cycles: ≥ 750 (IEC/EN 60603-7)

Diameter Range for Solid and 22-24 AWG

Stranded Copper Conductors: 0.50 mm to 0.65 mm (0.016" to 0.025")

Wire Insulation Diameter Range (PE,PVC): 1.04 mm to 1.60 mm (0.041" to 0.063")

Contact Resistance: ≤ 3 mΩ typical

Contact Re-terminations: ≥ 200

Insulation Resistance at 40 ºC (104 ºF) and 93% RH: ≥ 500 MΩ (IEC 512-2-3a)

Safety Rating: UL 1863

Flammability Rating: UL 94 V-0

CAT5E 8P8C tool free AP type 90 degree Keystone jack

Order Data

ITEM NO	UNIT	DESCRIPTIONS
TP-5207-C3U4	pcs	Keystone jack, CAT3, 6P4C, 90 degree, tool free, AP
TP-5207-C3U6	pcs	Keystone jack, CAT3, 6P6C, 90 degree, tool free, AP
TP-5207-C5EU8	pcs	Keystone jack, CAT5E, UTP, 8P8C, 90 degree, tool free, AP
