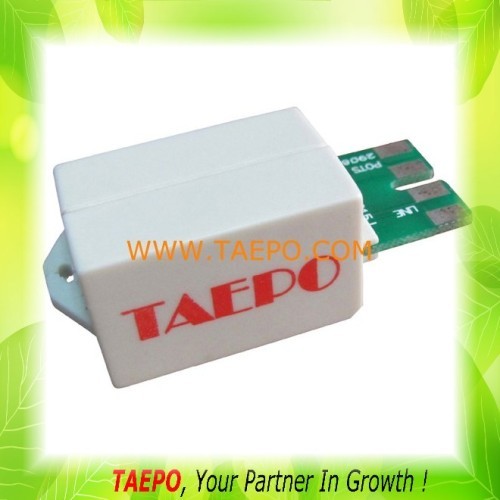

VDSL2 over POTS splitter for LSA module # TP-1201-10/10P

Payment Terms:	T/T,L/C,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: TP-1601-1VD2

Production Capacity: A large number of

Delivery Date: 7- 14 days

Category: Copper communications

Color: Ivory

Net weight: 11.5g

Environment: Used in the central office ...

Return loss: 300-3400Hz

Means of Transport: Ocean,Land,Air;Courier

Packing: inner box + carton

Brand Name: TAEPO / OEM / Neutral

Material: ABS with PCB

Dimension: 45x16x19mm

Function: for LSA module

Insertion loss: 300-3400Hz

Standard: ITU-T G992.1 E1

It is the device that uses low-pass and high-pass filters to direct analog voice and DSL signals to different lines.

VDSL2 over POTS splitter for LSA module # TP-1201-10/10P

Order Data

ITEM NO	UNIT	DESCRIPTIONS
TP-1601-1VD2	pcs	VDSL2 over POTS splitter for LSA module # TP-1201-10/10P

Schematic Diagram

Schematic Diagram for VDSL2 over POTS splitter for LSA module # TP-1201-10/10P

Schematic Diagram for VDSL2 over POTS splitter for LSA module # TP-1201-10/10P

Technical Specs

1) Application: ADSL 2&2+ over POTS CO SPLITTER

2) Compliance with Standard of ITU-T G992. 1 & ITU-T G992. 5 : Low Pass filter

3) Compliance with Standard of ETSI TS 101-728 & TS 101-952-1-2 : High Pass filter

4) Satisfy with ITU-T K.20

Low Pass filter
Impedance		600 Ω
Attenuation @300KHz—2.208MHz		55dB min
Insertion Loss @0.3-3.4KHz		0.3dB
Insertion Loss distortion @ 1.0KHz		1.0dB
Return Loss @0.3—0.5KHz		14dB min
Return Loss @0.5—2KHz		18dB min
Return Loss @2.0—3.4 KHz		14dB min
Longitudinal Conversion Loss	0.2—1KHz	60dB min
	3KHz	55dB min
Ringing Voltage		0-105 V
DC Resistance		25Ω max
Delay Distortion(0.5—2.8KHz)		150μS max
DC Current		100 mA
High Pass filter
Insertion Loss@32~50KHZ		-3dBmax
Insertion Loss@50~1104KHZ		-1dBmax
Attenuation@3KHz		-44dBmin
Attenuation@1KHz		-63dBmin
