B type Lock joint connector for solid copper cable TP-1310-B manufacturer from China NINGBO TAEPO Communications Co., Ltd.

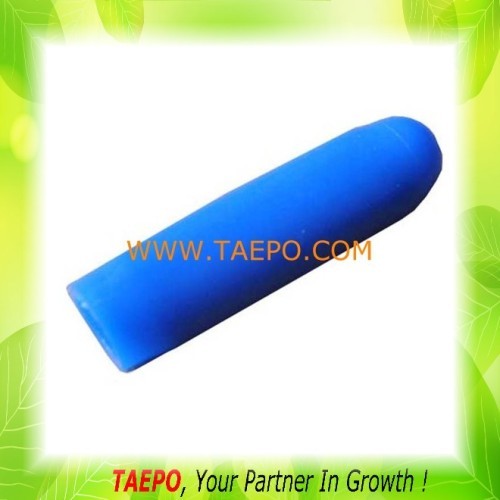

B type Lock joint connector for solid copper cable

Payment Terms:	T/T,L/C,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: TP-1310-B

Production Capacity: A large number of

Delivery Date: 7-14 days

Category: Copper communications

Type: B

Max Cable diameter: 0.4-0.9 mm

Configuration: sealed moisture-rsistant tw...

Means of Transport: Ocean,Land,Air;Courier

Packing: 500pcs/bag+carton

Brand Name: TAEPO / OEM / Neutral

Color: Blue

Material: ABS jacket

Max insulation diameter: 1.67 mm

It is applied to telephone wiring connection. It is designed for 0.4mm-0.9mm copper or copper-clad steel wires with insulation diameters 1.67mm

B type Lock joint connector

TP-1310-UY2	bag	Lock joint connector, UY2, 0.4-0.9mm conductor, max insulation 2.08mm, dual pins,100pcs/bag
TP-1310-UR	bag	Lock joint connector, UR, 0.4-0.9mm conductor, max insulation 1.67mm, dual pins,100pcs/bag
TP-1310-UG	bag	Lock joint connector, UG, 0.4-0.9mm conductor, max insulation 1.67mm, dual pins,100pcs/bag
TP-1310-UR2	bag	Lock joint connector, UR2, 0.4-0.9mm conductor, max insulation 2.08mm, dual pins,100pcs/bag
TP-1310-UY	bag	Lock joint connector, UY, 0.4-0.7mm conductor, max insulation 1.52mm, single pin,100pcs/bag
TP-1310-UYF	bag	Lock joint connector, UYF, 0.4-0.8mm conductor, max insulation 1.52mm, single pin,100pcs/bag
TP-1310-UB2A	bag	Lock joint connector, UB2A, 0.4-0.9mm conductor, max insulation 2.08mm, dual pins,100pcs/bag
TP-1310-UB	bag	Lock joint connector, UB, 0.4-0.7mm conductor, max insulation 1.27mm, single pin,100pcs/bag
TP-1310-U1R	bag	Lock joint connector, U1R, 0.5-0.9mm conductor, max insulation 3.18mm,100pcs/bag
TP-1310-U1R2	bag	Lock joint connector, U1R2, 0.5-0.9mm conductor, max insulation 2.30mm, 100pcs/bag
TP-1310-U1B	bag	Lock joint connector, U1B, 0.9-1.3mm conductor, max insulation 3.18mm, 100pcs/bag
TP-1310-B	pcs	Lock joint connector, B type, 0.4-0.7mm conductor, max insulation 1.67mm,100pcs/bag
TP-1310-UDW2	pcs	Lock joint connector, UDW2, 0.9-1.3mm conductor, max insulation 4.45mm, 100pcs/bag
TP-1310-PB	pcs	Lock joint connector, Picbond, AWG26-22 conductor,100pcs/bag

Descriptions

1. TP-1310-B lock joint connector, two wire inline joints on telephone drop wire of phosphor bronze with plated tin conductors.

2 It is applied to telephone wiring connection. The lock joint connector is designed for 0.4mm-0.9mm copper or copper-clad steel wires with insulation diameters 2.08mm.

3. The connector is filled with a moisture resistant compound in order to provide moisture proof connections.

4. The connector can provide total environmental sealing around IDC-contacts.

5. Plastic part: durable polycarbonate with durable, high impact material, red lid and transparent bottom.

6. Contact pin: phosphor bronze with plated tin surface.

7. The filling compound is prepared from fully synthetic dimethyl silicone fluid.

8. All materials is suitable for operation in the tropic with maximum temperature up to 80℃.

9. All materials used in the connectors shall be non-toxic and dermatologically safe.
