Model No.: TP-1301-1G

Production Capacity: 50000 Piece/Pieces per Week

Delivery Date: 7-14 days

Category: Copper communications

Means of Transport: Ocean,Land,Air

Packing: 20pcs/inner box + 320pcs/ca...

Brand Name: TAEPO / OEM / Neutral

Material: ABS or PC with gel filled

It is the mostly widely used IDC module and ideal connectivity products. It adopts IDC (Insulation Displacement Connection) technique.

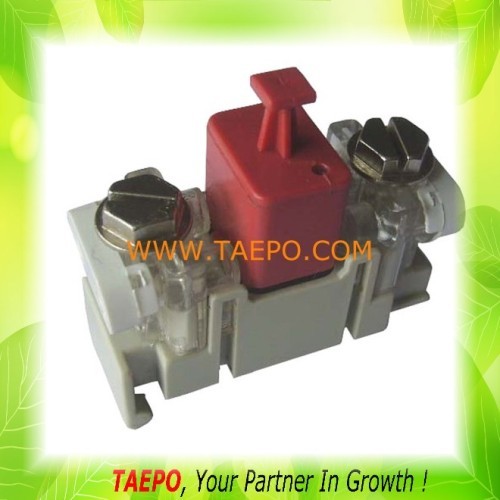

1 pair STB module with protection against over-voltage

ITEM NO	UNIT	DESCRIPTIONS
TP-1301-1	pcs	1 pair STB module without protection
TP-1301-1G	pcs	1 pair STB module with protection against over-voltage
TP-1301-1GP	pcs	1 pair STB module with protection against over-voltage over-current
TP-1301-1PM	pcs	1 pair plug-in module with protection against over-voltage over-current

Main Features

Insulation Displacement Connection

Reliable connections

Flame retardant performance

Modular design and installations

Water and humidity proof

Technical Parameters

Working temperature: -45℃ ~ 60℃

Storage temperature: -50℃ ~65℃

Relative humidity: ≤85%(+30℃)

Atmospheric pressure: 70kPa ~106kPa

Appearance: the color of all metal and plastic parts is uniform, without any scratch, rust, crusting and cracks.

The labels are clear and complete.

Insulation resistance: under normal ambient conditions, after high temperature test, low temperature test, temperature varying test and humidity heat test, the insulation resistance between any two independent contacts, and/or between contacts and metal parts ≥ 1000MΩ

Contact resistance between contacts: under normal ambient conditions, the contact resistance between contacts ≤7 mΩ. After high temperature test, low temperature test, temperature varing test and humidity heat test, the increasing resistance ≤3 mΩ And after inserting the connection cord (or test cord) into the module for 200 times, the increasing resistance ≤3 mΩ

Contact resistance between conductor and contact: under normal ambient conditions, the contact resistance between contacts ≤3 mΩ. After high temperature test, low temperature test, temperature varing test and humidity heat test, the increasing resistance ≤2 mΩ. And after terminating for 200 times, the increasing resistance ≤2 mΩ.

Dielectric strength: under normal ambient conditions, after high temperature test, low temperature test, temperature varying test and humidity heat test, the insulation resistance between any two independent contacts, and/or between contacts and metal parts is able to withstand an AC voltage of of 1000V (virtual value) at 45Hz~60Hz sinowave for 1 minute, without spark over and flying arc

Nominal DC spark-over voltage (100V/s) : 230±20% V

Impulse spark-over voltage (1kV/us): ≤700V

Impulse discharge current (8/20us, 10 times) (a+b)-e: 5kA

Impulse discharge current (10/1000us, 300times) (a+b-e):100A

AC discharge current (50Hz, 1s, 10 times) )(a+b)-e:5A

Gas tight performance: contact touches the conductor at both sides, and thus forming the gas tight area, while the area of gas tight occupies ≥50% of the touched area on each side.

Conductor diameter range: 0.32mm-0.6mm, while insulation ≤ 1.4mm

Pulling strength:≥25N while pulling from the vertical side of the contacts

Flame retardant performance: all plastic parts are flame retardant, reaching grade of UL FV0

Life circle: ≥200 times
