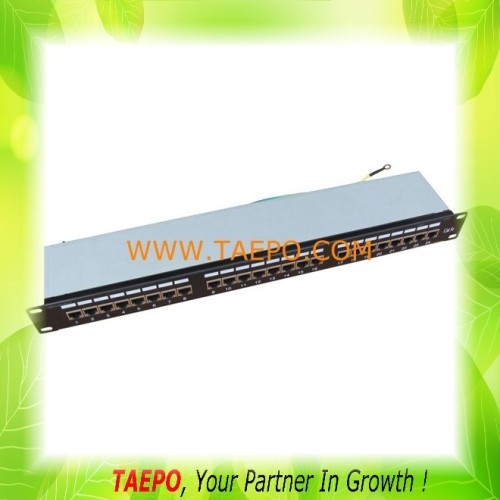

19"  1U 24-port   STP CAT6 patch panel


Description

A 19-inch 1U 24-port CAT6 RJ45 shielded network patch panel with bracket is a piece of networking equipment typically used in data centers, server rooms, or network closets.

Here's what each part of the description means:

19-inch: This refers to the width of the patch panel. It's designed to fit into a standard 19-inch equipment rack or cabinet, which is common in server rooms and network installations.

1U: This indicates the height of the patch panel in rack units (U). 1U is equal to 1.75 inches (44.45 mm). So, a 1U patch panel takes up 1.75 inches of vertical space in the rack.

24 port: This specifies the number of ports available on the patch panel. Each port is where you can connect an Ethernet cable (CAT6 in this case) to establish network connections.

CAT6: This denotes the category of Ethernet cables supported by the patch panel. CAT6 cables are used for Gigabit Ethernet and can support higher data transfer rates and frequencies compared to CAT5e cables.

RJ45: This refers to the type of connector used on the patch panel. RJ45 connectors are standard for Ethernet connections.

Shielded: Shielded patch panels provide additional protection against electromagnetic interference (EMI) and crosstalk, which can improve the overall performance and reliability of the network connections.

With bracket: This indicates that the patch panel comes with mounting brackets or ears that allow it to be easily installed in a rack or cabinet.

In summary, a 19-inch 1U 24-port CAT6 RJ45 shielded network patch panel with bracket is a compact and rack-mountable device that facilitates organized and reliable Ethernet connections in a structured cabling environment, offering shielding for enhanced performance and including the necessary brackets for installation.

Main Features

The main features of a 19-inch 1U 24-port CAT6 RJ45 shielded network patch panel with bracket include:

• High Port Density: It provides 24 ports in a compact 1U (1.75 inches) height, maximizing the number of Ethernet connections in a limited rack space.

• CAT6 Compatibility: Designed to support CAT6 Ethernet cables, which are capable of Gigabit Ethernet speeds and higher frequencies compared to older cable categories like CAT5e.

• Shielded Design: Offers shielding to minimize electromagnetic interference (EMI) and crosstalk, ensuring more reliable and consistent network performance.

• Rack-Mountable: Fits into a standard 19-inch equipment rack or cabinet, making it suitable for use in data centers, server rooms, and network closets.

• Includes Mounting Bracket: Comes with brackets or ears for easy installation and secure mounting in a rack.

• Labeling and Organization: Often includes labeling areas or numbered ports for easy identification and organization of network connections.

• Durability and Build Quality: Typically made from durable materials to withstand the rigors of networking environments and ensure long-term reliability.

• Compatibility with Standard RJ45 Connectors: Supports standard RJ45 connectors, ensuring compatibility with a wide range of Ethernet devices and cables.

  These features collectively make the 19-inch 1U 24-port CAT6 RJ45 shielded network patch panel with bracket a versatile and essential component in building structured and efficient Ethernet networks, particularly in environments where reliability, organization, and performance are crucial.

Applications
1) Suitable for the termination of wire AWG22-26

2) Termination repetition times no less than 250 times

3) Insertion times no less than 750 times

4) 10u gold plating on contacts

5) Plastic material: PC/PPO

Order Data

19"  1U 24-port   STP CAT6 patch panel
